Godiag GT100+ Pinout to Audi A4 Power Steering Module

How to connect Audi A4 8K power steering module with godiag gt100+ breakout box super economical tool? So you can troubleshoot the module with a diagnostic scanner on bench.

Disclaimer: Not our work. Just for sharing purpose.

To connect your Audi A4 8k with Godiag gt100

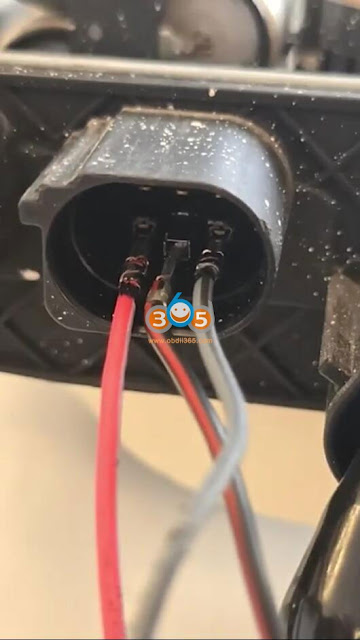

Middle connector
2 ignition
4 can HIGH
6 can LOW
Big pin connector
Right side positive battery
Left GND

Images attached:

Godiag GT100+ Pinout to Audi A4 Power Steering Module 1

Godiag GT100+ Pinout to Audi A4 Power Steering Module 2

Godiag GT100+ Pinout to Audi A4 Power Steering Module 3

Godiag GT100+ Pinout to Audi A4 Power Steering Module 4

Godiag GT100+ Pinout to Audi A4 Power Steering Module 5

Godiag GT100+ Pinout to Audi A4 Power Steering Module 6

Troubleshooting with the Launch X431 PAD V

Godiag GT100+ Pinout to Audi A4 Power Steering Module 7

Godiag GT100+ Pinout to Audi A4 Power Steering Module 8

Godiag GT100+ Pinout to Audi A4 Power Steering Module 9

Godiag GT100+ Pinout to Audi A4 Power Steering Module 10
